CK61125 Heavy Duty Horizontal CNC Metal Lathe 0.01mm Positioning Accuracy

Name: CK61125 Heavy Duty Horizontal CNC Metal Lathe 001mm Positioning Accuracy
Brand: cnc lathe machine
Price: 25000 USD

China CK61125 Heavy Duty Horizontal CNC Metal Lathe 0.01mm Positioning Accuracy wholesale

Brand Name : cnc lathe machine

Model Number : CK61125

Place of Origin : SHANDONG

Certification : CE

MOQ : 1/SET

Price : $25000-$38000

Payment Terms : T/T

Supply Ability : 30/SET

Delivery Time : 30DAYS

Packaging Details : non-fumigation wooden box

Through Bar Diameter : Ø104/(optional Ø130)

Tool Post Stations : 8, 6, 4

Distance Between Centres : 3000mm

Machine Dimension : 2/2.3*1.5*1.7

Positioning Accuracy : 0.01

Cnc Or Not : Cnc

Spindle Speed Ranges : 100~1600r/min

Precision : High Precision

Total Power : 15kw

Condition : New

Max Processing Length : 1500mm

Tailstock Shaft Diameter : 95mm

Function : Metal Machining

Number Of Axes : 2

Bed Type : Flat Bed

Structure : Flat Bed Lathe

Coolant System : Automatic

Control System : CNC

Contact Now

CK61125 0.01mm Positioning Accuracy CNC Flat Bed Lathe with Precision Coolant System

CK61125 Heavy Duty Horizontal CNC Metal Lathe 0.01mm Positioning Accuracy

Specification

Item	CK61125*1500	CK61125*2000	CK61125*3000
Max. swing over bed (mm)	Φ1250	Φ1250	Φ1250
Max. swing dia. over cross slide(mm)	Φ970	Φ970	Φ970
Max.processing length(mm)	1500	2000	3000
Form	Three gears No grade to change frequency
Number of spindle speed	No grade
Range of spindle speed(r/min)	6-500 rpm
The spindle terminal structure	C11
Diameter of spindle bore (mm)	φ130
The taper of spindle front-end	(Metric)120 1:20
Power of main motor (KW)	15KW
Max.travel of tool post (mm)	X:530 Z:1700/X:530 Z:2300/X:530 Z:3300
Fast moving feed speed (mm/min)	X:4000 Z:5000
Resetting accuracy(mm)	X:0.012 Z:0.016
Processing accuracy(mm)	IT6-IT7
Surface roughness	Ra1.6
Sleeve diameter of tailstock (mm)	φ100
Sleeve travel of tailstock (mm)	250
Cone hole taper of tailstock’s sleeve	MT6
Standard configuration	Four-station vertical electrical knife rest
Restting accuracy (mm)	0.01
Length of section of knife handle (mm)	30×30	30×30	30×30
Lengthwidthheight	3700×1920×1990	4700×1920×1990	5700×1920×1990
Net weight (Kg)	6500	8000	9000

Product Description

CK61125 CNC turret horizontal lathe machine for steel with turning, high-efficiency automated machine tools, the whole machine with integrated protection structure, beautiful
appearance. Mainly used for complex shape parts or high precision parts processing, can automatically complete internal and external Round surface, conical cotton, round face, end face, a variety of threads, drilling, hinge, boring and other turning. The machine is tested in strict accordance with the inspection procedure. Each machine adopts laser interferometer to detect X and Z axis positioning accuracy and repeat positioning accuracy to ensure the accuracy and reliability of the machine.

Products feature

Standard Configuration :
♥- System:GSK980. X/Z axis servo motor.
♥- Manual 3-jaw chuck.
♥- 4-station electric tool post.
♥- Manual tailstock
♥- Cooling system.
♥- Lighten system.
♥- Automatic lubrication system.

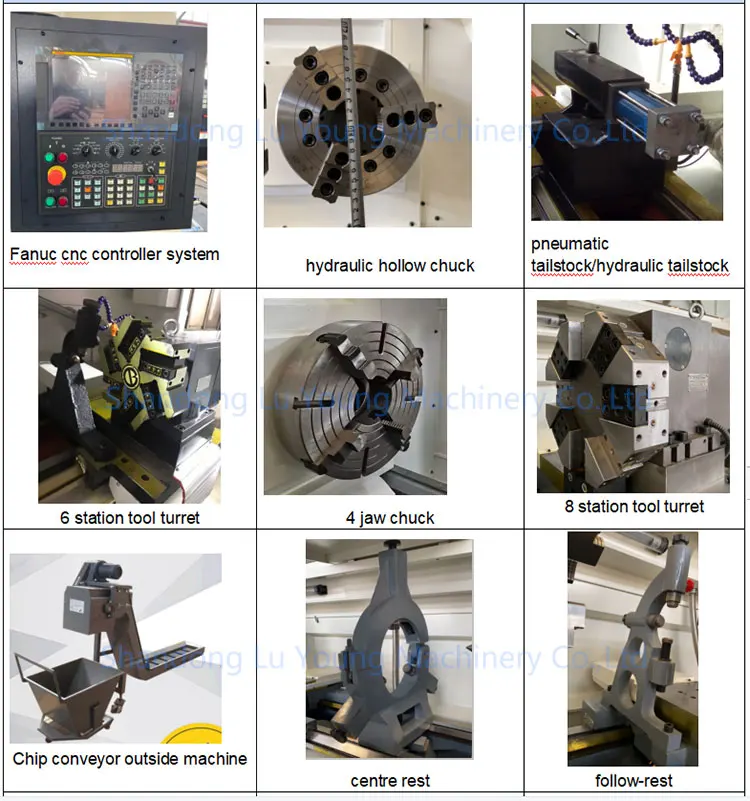

Optional Configuration:
♦- CNC system: Siemens, Fanuc, KND.
♦- Hydraulic chuck/Pneumatic chuck.
♦- Hydraulic tailstock/Pneumatic tailstock.
♦- Horizontal 6-station turret/8-station turret.
♦- Auto bar feeder
♦- Chip conveyor

Quality Inspection Process

Company Profile

Luyang CNC machinery company has 20 years of production lathe experience, main CNC lathe, CNC milling machine, processing center,Swiss CNC lathe high-tech enterprise.The company has a professional production and development team and favorable after-sales technical team support.The company takes the strength to make the product, the service wins the customer, the customer as the basic management concept.Our company has gained a good reputation both at home and abroad by providing customers with
cost-effective CNC machine tools and excellent timely sales advice and after-sales service.Development, innovation,people-oriented, is the direction my company has been working on.
